Imagine crystal-clear audio flowing seamlessly through your meticulously crafted PCB project. That pristine sound, however, hinges on a seemingly small but critical component: the input jack. Improper wiring can lead to frustrating hum, crackling interference, or even complete silence. Therefore, mastering the art of wiring a PCB input jack is essential for any electronics enthusiast. This seemingly simple task often presents subtle challenges that can trip up even seasoned makers. In this guide, we’ll delve into the intricacies of properly wiring a PCB input jack, ensuring a robust and noise-free connection that brings your projects to life with vibrant sound. We’ll explore various jack types, common wiring configurations, and troubleshooting tips to empower you with the knowledge to confidently tackle this crucial aspect of PCB design.
Firstly, understanding the anatomy of your input jack is paramount. Most commonly, you’ll encounter stereo jacks, featuring three terminals: left, right, and ground. Moreover, some jacks include a switch contact for detecting when a plug is inserted, often used for features like automatically switching off internal speakers when headphones are connected. Secondly, before soldering, carefully examine your PCB layout. The input jack footprint should clearly indicate the location of each terminal. Consequently, using a multimeter to verify continuity between the jack terminals and their corresponding PCB pads is a crucial step in avoiding mishaps. Additionally, consider the signal path; ideally, keep the input jack wiring separate from other signal traces to minimize interference. Furthermore, using shielded cable for the input signal can further reduce the risk of noise pickup, particularly in environments with strong electromagnetic fields. Finally, don’t underestimate the importance of proper grounding; a solid ground connection is the bedrock of a noise-free audio signal.
Once you’ve confirmed the pinout and prepared your components, the soldering process itself is relatively straightforward. However, precision is key. Firstly, apply a small amount of solder to the tip of your iron to improve heat transfer. Subsequently, heat the PCB pad and the jack terminal simultaneously, then apply solder to the joint, allowing it to flow smoothly. Avoid excessive solder, which can create shorts and compromise the connection. Next, carefully inspect each solder joint for a clean, shiny finish, ensuring no bridges exist between adjacent terminals. Lastly, after the solder has cooled, use a multimeter to double-check the continuity between the jack and the PCB pads, verifying a solid connection. With careful attention to detail and a methodical approach, you can achieve a professional and reliable connection that guarantees a clear and uninterrupted audio experience for your projects.
Gathering the Necessary Tools and Materials
Alright, so before we dive into the actual wiring, let’s make sure we’ve got everything we need laid out and ready to go. Having the right tools and materials on hand will make the whole process much smoother and less frustrating. Trust me, there’s nothing worse than getting halfway through a project only to realize you’re missing a crucial component.
First things first, you’ll need the star of the show: the PCB input jack itself. Make sure you’ve got the correct type for your specific application. There are different sizes and configurations available (mono, stereo, etc.), so double-check your project requirements before ordering. It’s also a good idea to have a spare or two on hand, just in case.
Next up, let’s talk soldering equipment. A good quality soldering iron is essential. A temperature-controlled one is ideal, allowing you to adjust the heat for different types of solder and components. A soldering station is even better as it often includes helpful features like a built-in helping hand and cleaning sponge. Speaking of solder, you’ll obviously need some of that too. Rosin-core solder is the standard choice for electronics work. The rosin acts as a flux, helping the solder flow smoothly and adhere properly.
Now, for some essential tools. Wire strippers are a must-have for prepping your wires. Get a pair that can handle the gauge of wire you’ll be using. A good set of needle-nose pliers will also come in handy for gripping and manipulating small components and wires. A multimeter can be incredibly helpful for troubleshooting any connectivity issues after you’ve finished wiring.
To keep things organized and secure, some helping hands or a small vise can be invaluable. These will hold your PCB and jack steady while you’re soldering, giving you more control and precision. Finally, don’t forget safety! Safety glasses are crucial to protect your eyes from stray solder splashes or wire clippings. And good ventilation is important when working with solder fumes.
Here’s a quick summary of the essential tools and materials:
| Item | Description/Notes |
|---|---|
| PCB Input Jack | Choose the correct type (mono/stereo) and size. |
| Soldering Iron/Station | Temperature-controlled is recommended. |
| Solder | Rosin-core solder is the standard choice. |
| Wire Strippers | Select the right gauge for your wires. |
| Needle-Nose Pliers | For gripping and manipulating small components. |
| Multimeter (Optional) | Helpful for troubleshooting. |
| Helping Hands/Vise | Keeps your work steady. |
| Safety Glasses | Protect your eyes. |
With all your tools and materials gathered, you’re ready to move on to the next step!
Understanding the PCB Input Jack Pinout
Before you even think about soldering, it’s crucial to grasp how your PCB input jack is laid out. Different jacks have different pin configurations, and mixing them up can lead to frustrating troubleshooting or even damage to your equipment. Knowing the pinout is the first step towards a clean and functional audio connection.
Typical Pin Configurations
While there are variations, most PCB-mount audio jacks follow a few common patterns. Let’s explore the most popular ones you’ll encounter.
Mono (TS) Jacks
These are your simple, single-channel jacks, often used for instrument inputs or unbalanced audio signals. They typically have two pins:
| Pin | Function |
|---|---|
| Sleeve | Ground/Shield |
| Tip | Signal |
Stereo (TRS) Jacks

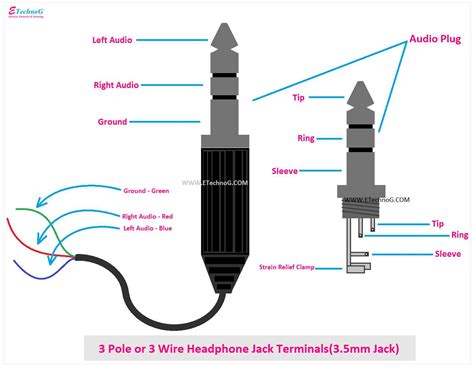

Stereo jacks handle two audio channels (left and right) and are commonly found in headphone outputs or balanced audio inputs. They typically have three pins:
| Pin | Function |
|---|---|
| Sleeve | Ground/Shield |
| Ring | Right Channel/Signal 2 (or Return in balanced connections) |
| Tip | Left Channel/Signal 1 (or Send in balanced connections) |
Stereo with Switch (TRS) Jacks
These jacks add an internal switch mechanism that activates when a plug is inserted or removed. This is frequently used for things like detecting when headphones are plugged in and automatically switching off the main speakers. Understanding the switching behavior is essential to using these jacks correctly. These jacks will generally have three or more pins depending on the switching arrangement. A common configuration is:
| Pin | Function |
|---|---|
| Sleeve | Ground/Shield |
| Ring | Right Channel/Signal 2 |
| Tip | Left Channel/Signal 1 |
| Switch Pin | Connects to another specified pin when the jack is unoccupied, disconnecting when a plug is inserted. |
Identifying the exact pinout of your specific jack is paramount. Consult the datasheet or documentation provided with your jack. Look for clear diagrams or pin labels. If documentation is unavailable, sometimes the manufacturer’s markings on the jack itself can offer clues. A multimeter can also be employed to test continuity between pins and the jack’s physical contacts to determine the correct mapping. Double-checking the pinout before soldering saves you from potential headaches later.
For stereo jacks, the ring and tip connections are where things can get slightly confusing. Different manufacturers may have variations in how these channels are assigned, especially in balanced audio applications. Some jacks might use the tip for the right channel and the ring for the left, while others follow the more conventional tip-left, ring-right assignment. Always rely on the datasheet for accurate information. With switched jacks, the switch functionality adds another layer of complexity. Datasheets will detail which pin is the switch terminal and how its connection changes when a plug is inserted or removed. This information is vital for correctly integrating the switching mechanism into your circuit.
Preparing the PCB and Input Jack
Getting your PCB and input jack ready for soldering is crucial for a clean and functional connection. This preparation involves a few key steps that ensure a smooth and reliable soldering process.
Inspecting the PCB
Before you even think about soldering, give your PCB a good once-over. Look for any imperfections, like scratches, breaks, or shorts. Check that the designated pads for the input jack are clean and free from any debris. A quick wipe with isopropyl alcohol and a lint-free cloth can remove any lingering residues. Also, make sure you have identified the correct pads for each connection on the input jack – ground, signal, and potentially a switch contact. A misplaced connection can lead to all sorts of audio headaches down the road.
Preparing the Input Jack
Tinning the Input Jack Terminals
Tinning the terminals of your input jack is a game-changer for a solid solder joint. This process involves applying a thin layer of solder to each terminal before soldering it to the PCB. Why is this so important? Well, it helps the solder flow smoothly and evenly onto the PCB pad, creating a stronger and more reliable connection. It also helps to prevent cold solder joints, which are notorious for causing intermittent connections and signal loss. To tin the terminals, simply heat each terminal with your soldering iron and apply a small amount of solder. The solder should flow smoothly and coat the terminal evenly. If it beads up or doesn’t adhere properly, the terminal might be dirty or oxidized. Give it a quick clean with some isopropyl alcohol and try again.
Choosing the right type of solder is also key. Lead-free solder is generally preferred for its environmental friendliness, but it requires a slightly higher soldering temperature and can be a tad more challenging to work with. Leaded solder is easier to work with due to its lower melting point, but it’s essential to be mindful of proper ventilation and disposal practices. Regardless of which type you choose, a 60/40 or 63/37 solder composition is generally recommended for electronics work as it provides a good balance of flow and strength.
Here’s a quick guide to tinning the input jack terminals:
- Clean the terminals with isopropyl alcohol.
- Heat each terminal with your soldering iron.
- Apply a small amount of solder to each terminal, ensuring it flows evenly.
Different input jacks will have different configurations. Common types include mono (TS), stereo (TRS), and stereo with a switching contact (TRRS). Understanding the configuration of your specific jack is crucial for proper wiring. Here’s a quick breakdown:
| Jack Type | Abbreviation | Description | Typical Use |
|---|---|---|---|
| Mono | TS (Tip-Sleeve) | Two conductors: Tip (signal), Sleeve (ground) | Guitars, unbalanced audio signals |
| Stereo | TRS (Tip-Ring-Sleeve) | Three conductors: Tip (left signal), Ring (right signal), Sleeve (ground) | Headphones, balanced audio signals |
| Stereo with Switch | TRRS (Tip-Ring-Ring-Sleeve) | Four conductors: Tip (left signal), Ring 1 (right signal), Ring 2 (microphone or video), Sleeve (ground) | Headsets, smartphones |
Mounting the Input Jack to the PCB
With both the PCB and the input jack prepared, it’s time to carefully align the input jack onto the PCB, ensuring its pins slide smoothly into their corresponding holes or pads. Some jacks might have mounting flanges or tabs to secure them to the PCB, while others rely solely on the solder joints for stability. Once aligned, gently push the jack down until it’s flush against the PCB surface. If you’re using a jack with mounting hardware, secure it using nuts or screws as appropriate. This firm positioning is crucial for preventing the jack from moving during the soldering process, which could lead to weak or broken connections.
Connecting the Signal Wires
Alright, let’s dive into the nitty-gritty of wiring up your PCB input jack. This is where your audio signal enters the board, so getting it right is key. We’ll break down the common configurations and give you the knowledge to confidently solder those connections.
Understanding the Input Jack
Most PCB-mounted input jacks are either 1/4" (6.35mm) or 3.5mm (1/8") and come in a few different configurations: mono (TS), stereo (TRS), and stereo with a switch (TRS). “TS” stands for Tip-Sleeve, “TRS” for Tip-Ring-Sleeve. Understanding which type you’re dealing with is the first step.
Identifying the Terminals
Each part of the jack corresponds to a specific signal path. On a TS jack, the Tip carries the signal, and the Sleeve is the ground. For TRS jacks, the Tip is the left channel, the Ring is the right channel, and the Sleeve is the common ground. Switched jacks add an extra layer of complexity. Typically, the switch is connected to the Sleeve, and when a plug is inserted, the switch is disconnected.
| Jack Type | Tip | Ring | Sleeve |
|---|---|---|---|
| TS (Mono) | Signal | N/A | Ground |
| TRS (Stereo) | Left Channel | Right Channel | Ground |
| TRS (Switched Stereo) | Left Channel | Right Channel | Ground/Switch |
Soldering to the PCB
Before you start soldering, make sure your soldering iron is clean and at the right temperature. Too much heat can damage the jack and the PCB. Too little, and you’ll get a cold solder joint, which can cause all sorts of audio problems like crackling or intermittent signal loss. A good rule of thumb is to use enough solder so it flows smoothly and creates a shiny, concave fillet around the connection. Don’t overdo it, though, as excess solder can bridge connections and create shorts.
Wiring Configurations
For mono (TS) jacks, connect the Tip to your signal input pad on the PCB and the Sleeve to the ground plane. With stereo (TRS) jacks, the Tip goes to the left channel input, the Ring to the right channel input, and the Sleeve to ground. Now, switched stereo jacks are where things get a little more interesting. The Tip and Ring connections remain the same as standard stereo, but the Sleeve is usually connected to a switching circuit on the PCB. This switch is often used to detect when a plug is inserted and can be used to, for example, disconnect the internal speakers when headphones are plugged in.
Sometimes, the PCB might have dedicated pads labelled for each connection (Tip, Ring, Sleeve), which makes things much simpler. Other times, you might need to consult the schematic diagram to figure out which pads correspond to which connections. Double-checking the diagram is always a good practice to avoid costly mistakes. If you’re unsure, use a multimeter in continuity mode to trace the connections from the jack’s terminals to the PCB pads.
Finally, secure the jack to the PCB before soldering. This will prevent it from moving while you’re working and ensure a good solid connection. You can typically secure the jack by snapping it into place or using mounting hardware. Once everything’s in place and you’ve double-checked your connections against the schematic, you’re ready to solder.
Securing the Input Jack to the PCB
Alright, so you’ve got your input jack and your PCB, and you’re ready to make the magic happen. Securing the jack properly is crucial for a robust and reliable connection. A loose jack can lead to intermittent audio, crackling, or even a complete loss of signal. Nobody wants that, right? So let’s dive into how to do this right.
Mechanical Stability is Key
Before soldering, it’s essential to ensure the jack is snug against the PCB. Most jacks are designed with mounting points – typically flanges or tabs – specifically for this purpose. These flanges should sit flush against the PCB surface. This not only provides stability during soldering but also ensures a good ground connection and prevents stress on the solder joints.
Using Mounting Hardware
Many jacks will require mounting hardware like nuts and washers. If your jack includes these, use them! They provide extra stability and help prevent the jack from twisting or loosening over time. Make sure to tighten these securely, but don’t overtighten, as this could damage the PCB or the jack itself. A snug fit is what we’re aiming for.
PCB Mount vs. Panel Mount Jacks: Choosing the Right One
Choosing the correct type of jack is paramount. PCB mount jacks are designed to be soldered directly to the PCB, while panel mount jacks are designed to be secured to a chassis or panel, and then connected to the PCB via wires. Make sure you’ve selected a PCB mount jack for this application. Using the wrong type can lead to difficulties in mounting and potential damage to your components.
Soldering Best Practices for a Secure Connection
Once the jack is securely mounted, it’s time to solder. Use a good quality soldering iron and rosin-core solder. Heat the pad and the jack’s terminal simultaneously, then apply solder to the joint. Don’t overdo the solder – you want a clean, shiny joint without excessive solder bridging across connections. A good solder joint will look smooth and slightly concave. Avoid cold solder joints, which look dull and blobby, as they can lead to unreliable connections. After soldering, inspect the joints carefully for any issues. A little practice goes a long way in achieving perfect solder joints.
Strain Relief: Protecting Your Connections
Strain relief is a critical, often overlooked aspect of securing input jacks. This involves securing the cable connected to the jack so that any tugging or bending of the cable doesn’t put stress directly on the solder joints. You can achieve this by using a cable clamp, tie wrap, or even a dab of hot glue to secure the cable near the jack. This prevents the cable’s movement from transferring to the solder joints, protecting them from breakage and ensuring a long-lasting connection.
Considerations for Different Jack Types
Different jack types might require slightly different mounting approaches. For instance, stereo jacks have more connections than mono jacks, so you’ll need to ensure all terminals are correctly soldered and secured. Similarly, some jacks might have specific mounting requirements outlined in their datasheets. Always consult the datasheet for your specific jack for detailed instructions and best practices.
| Jack Type | Mounting Style | Typical Hardware |
|---|---|---|
| 1/4" Mono Jack (PCB Mount) | Through-hole | Nuts and Washers (sometimes) |
| 3.5mm Stereo Jack (PCB Mount) | Through-hole | Nuts and Washers (sometimes) |
| RCA Jack (PCB Mount) | Through-hole | Typically none |
Testing the Connection
Alright, so you’ve soldered your PCB input jack into place. Now, before you plug in your precious instrument and crank it up to eleven, it’s crucial to test the connection. This ensures everything is wired correctly and prevents potential damage to your equipment. A few simple checks can save you a lot of headache down the line.
Visual Inspection
First things first, take a good look at your handiwork. Inspect the solder joints for any obvious issues. Are there any cold solder joints? These look dull and grainy, and the connection might be weak or non-existent. A good solder joint should be smooth and shiny, indicating a solid electrical connection. Look for any bridging between solder points, where the solder has accidentally connected two points that should be isolated. If you see any problems, re-solder the affected areas.
Continuity Test with a Multimeter
Now, grab your multimeter. Set it to continuity mode (usually indicated by a diode symbol or a sound wave icon). This mode sends a small current through the circuit and beeps if a connection is present. With your PCB unplugged from any power source, touch one probe of the multimeter to the tip of your input jack. Then, touch the other probe to where the tip connection should be on your PCB. If you hear a beep, you have continuity, meaning the connection is good. Repeat this process for the ring and sleeve connections. Below is a table showing typical wiring configurations and what you should test with your multimeter.
| Jack Contact | Typical PCB Connection |
|---|---|
| Tip | Signal (Hot) |
| Ring | Ground (Return) for Stereo or Signal (Cold) for Balanced |
| Sleeve | Ground (Return) |
Remember to cross-reference this with your specific circuit diagram, as variations can exist.
Testing with an Audio Source (Low Volume!)
If your continuity tests pass, the final step is to test with an actual audio source. Before you do anything, turn the volume on your audio source ALL the way down. This is paramount to avoid damaging your equipment if there’s a miswiring. Plug your audio source into the freshly soldered jack. Gradually increase the volume to a low, comfortable listening level. If you hear clear audio from your output (speaker, amplifier, etc.), congratulations! You’ve successfully wired your PCB input jack. If you hear any crackling, distortion, or no audio at all, double-check your wiring and repeat the previous testing steps. It’s possible a loose connection or a cold solder joint is causing the issue. Sometimes, simply re-flowing the solder can resolve intermittent audio problems.
By taking these precautions, you’ll ensure a solid and reliable connection for your audio projects, avoiding potential frustration and damage down the line.
Troubleshooting Common Issues
Encountering problems with your newly wired PCB input jack? Don’t worry, it’s often a simple fix. Let’s walk through some common issues and how to resolve them.
No Signal
Perhaps the most frustrating issue is when you get no signal at all. This can manifest as complete silence, or perhaps a very faint, distorted signal. Several culprits could be at play here:
Check Your Connections
First, double-check all your solder joints. A cold solder joint, where the solder hasn’t properly bonded with the components, can cause intermittent or no signal. Look for dull, grainy solder joints or connections where the solder hasn’t flowed smoothly. Reheat these joints with your soldering iron, adding a touch of fresh solder if needed. Also, inspect the jack itself; sometimes, the internal connections can break. If you suspect a faulty jack, replacement is usually the best course of action.
Inspect the Cable
It’s easy to overlook the obvious. Before you dive into complex troubleshooting, try a different cable. A broken cable is a surprisingly common cause of signal loss. Inspect the cable for any visible damage, like kinks or cuts. If you have a multimeter, test the cable for continuity to ensure the signal is passing through.
Grounding Issues
Improper grounding can lead to all sorts of audio gremlins, including hum, buzz, and even complete signal loss. Make sure the ground connection on your input jack is securely soldered to the ground plane of your PCB. Check for any unintentional shorts between the ground and signal paths. A clean and reliable ground is essential for proper operation.
Component Conflicts
Sometimes, other components on your PCB might interfere with the input jack. This is more common in densely populated boards. Check the placement of nearby components, particularly those related to power or other audio signals. Make sure there’s adequate spacing and no unintended connections. If necessary, reroute traces or reposition components to minimize interference.
Testing with a Multimeter
A multimeter can be invaluable for diagnosing signal path issues. With the multimeter set to continuity mode, you can trace the signal path from the input jack through the circuit to ensure it’s flowing correctly. This can help pinpoint any breaks or shorts in the circuit. You can also check the voltage at the input jack to confirm it’s receiving the expected signal level.
Signal Interference
External interference can also disrupt the signal. Strong electromagnetic fields from nearby devices, like power supplies or transformers, can induce noise or even block the signal completely. Try moving your setup to a different location to see if the problem persists. Shielding your PCB with a metal enclosure can also help mitigate interference.
Incorrect Wiring
Refer to your circuit diagram and double-check that you’ve wired the input jack correctly. Even a simple swap of the left and right channels or a misplaced ground connection can lead to problems. Pay close attention to the pinout of your specific jack, as they can vary. Here’s a common example of a stereo input jack pinout:
| Pin | Function |
|---|---|
| Tip | Left Channel Signal |
| Ring | Right Channel Signal |
| Sleeve | Ground |
Damaged Components
Lastly, while less common, it’s possible that the input jack itself is damaged. This is more likely if the jack has been subjected to physical stress, like excessive force when plugging in a cable. Try replacing the jack with a new one to see if that resolves the issue. If you’re still experiencing problems, consult the datasheet for your specific input jack for more detailed troubleshooting information or consider seeking assistance from an experienced electronics technician.
Wiring a PCB Input Jack: Best Practices
Properly wiring an input jack on a PCB is crucial for ensuring a clean audio signal and preventing unwanted noise or connection issues. While seemingly straightforward, several key considerations can significantly impact performance and reliability. This document outlines best practices for wiring a PCB input jack, focusing on achieving optimal signal integrity and long-term durability.
First, choose the appropriate jack for your application. Consider factors like mono vs. stereo, size constraints, and mounting style (through-hole or surface mount). Ensure the chosen jack’s specifications align with the signal levels and impedance requirements of your circuit. Once selected, carefully plan the PCB layout, minimizing trace lengths between the jack and the subsequent circuitry to reduce signal degradation and interference pickup. Proper grounding is paramount; use a dedicated ground plane and connect the jack’s ground terminal directly to it with a short, low-impedance path.
Soldering the jack requires precision. Use an appropriate soldering iron and temperature to avoid overheating the jack or the PCB. Ensure a solid solder joint to each terminal, avoiding cold solder joints or solder bridges. For through-hole jacks, ensure proper alignment and secure mounting to the PCB before soldering. After soldering, inspect the connections thoroughly for any defects. Finally, test the connection using a multimeter to confirm continuity and absence of shorts.
People Also Ask About Wiring PCB Input Jacks
How do I wire a stereo input jack to a PCB?
Wiring a stereo input jack involves connecting three terminals: left channel, right channel, and ground. The tip of the jack typically corresponds to the left channel, the ring to the right channel, and the sleeve to ground. Consult the datasheet for your specific jack to confirm the pinout. Maintain consistent and short traces to both left and right channels to minimize signal imbalances.
Common Stereo Jack Configurations
The most common configuration is TRS (Tip-Ring-Sleeve). TS (Tip-Sleeve) jacks are also used for mono applications. Ensure your PCB layout and component choices match your chosen jack configuration.
What are common problems when wiring input jacks?
Common problems include intermittent connections due to cold solder joints, ground loops causing hum or buzz, and incorrect wiring leading to reversed channels or no signal. These issues can often be avoided through careful soldering, proper grounding techniques, and double-checking the wiring against the datasheet.
Troubleshooting Input Jack Issues
If experiencing issues, start by visually inspecting the solder joints for defects. Use a multimeter to check continuity between the jack and the intended destinations on the PCB. Verify proper grounding and look for any signs of shorts. If problems persist, re-solder the connections, ensuring a clean and solid joint.
How do I prevent noise when wiring input jacks?
Noise can be minimized by using shielded cable, implementing proper grounding practices, and keeping signal traces short and away from noise sources. Consider using a star ground configuration for optimal noise reduction.
What is the difference between TS and TRS jacks?
TS (Tip-Sleeve) jacks are mono, carrying a single audio channel and ground. TRS (Tip-Ring-Sleeve) jacks are stereo, carrying left and right audio channels plus ground. TRRS jacks add a fourth contact, often used for microphone input.
